Ensuring that you have a positive acoustic environment is extremely important to us. When it comes to room acoustics, we deal with the effects that the structural conditions of a room have on the acoustic events taking place in it.
The acoustic impression of a room is defined by:
- The amount of direct sound in the overall sound level
- The time lag and direction of early reflections and the amount of early reflections in the overall sound level
- The delayed action and spatial distribution of the reverberant sound and the amount of reverberant sound in the overall sound level, as well as its time course, the reverberation time
Our room acoustics measures involve arranging the room so that it influences the factors listed above in that its acoustic properties are adapted to suit its purpose in the best possible way.
In order to achieve this, we provide you with well-engineered absorber and panel systems in a variety of forms that can be used as wall and/or floor coverings.
These systems are available in an extremely wide variety of materials that are selected in accordance with the frequency that needs to be damped.
Take the right choise from the start!
Opt for an effective panel solution to an unbelievable price.
Spare yourself troublesome reworking to meet the required frequency level additional.
PHONIT Soundproofing Panels:
| Strengths: | availible in 50 / 80 and 100 mm |
| Construction: | Perforated sheet (L) 0,5 mm, Plain sheet (G) 1,00 / 1,50 and 2,00 mm |
| Coating: | Coil-coated, with protective film on both sides (similar to RAL 9002) |
| OUR OFFER: |  | ||
| PHONIT 50 ST-L0.5/G1.0 | UVP/ m² | € 74,80 | € 59,80 |
| PHONIT 80 ST-L0.5/G1.0 | UVP/ m² | € 84,70 | € 67,80 |
| PHONIT 100 ST-L0.5/G1.0 | UVP/ m² | € 91,30 | € 73,00 |
| PHONIT 50 ST-L0.5/G1.5 | UVP/ m² | € 83,60 | € 66,90 |
| PHONIT 80 ST-L0.5/G1.5 | UVP/ m² | € 93,50 | € 74,80 |
| PHONIT 100 ST-L0.5/G1.5 | UVP/ m² | € 100,10 | € 80,00 |
| PHONIT 50 ST-L0.5/G2.0 | UVP/ m² | € 91,30 | € 73,00 |
| PHONIT 80 ST-L0.5/G2.0 | UVP/ m² | € 101,20 | € 81,00 |
| PHONIT 100 ST-L0.5/G2.0 | UVP/ m² | € 107,80 | ? 86,20 |
| Surcharges: | Orders with an quantity less than 100 m² | >>> + 10% |
| Orders with an quantity of 101 - 299 m² | >>> + 3% | |
| Panels with a length less than 500 mm | >>> + 20% | |
| Panels with a length of 501 - 1.000 mm | >>> + 10% | |
| Delivery Time: | about 3 weeks or as agreed |
 |  |  |  |
| (Click to enlarge pictures) | |||

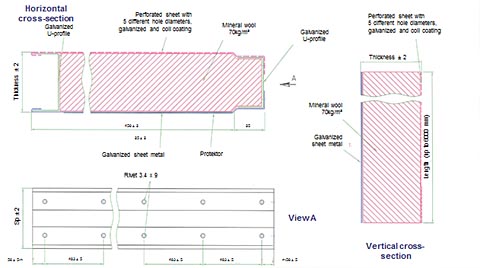

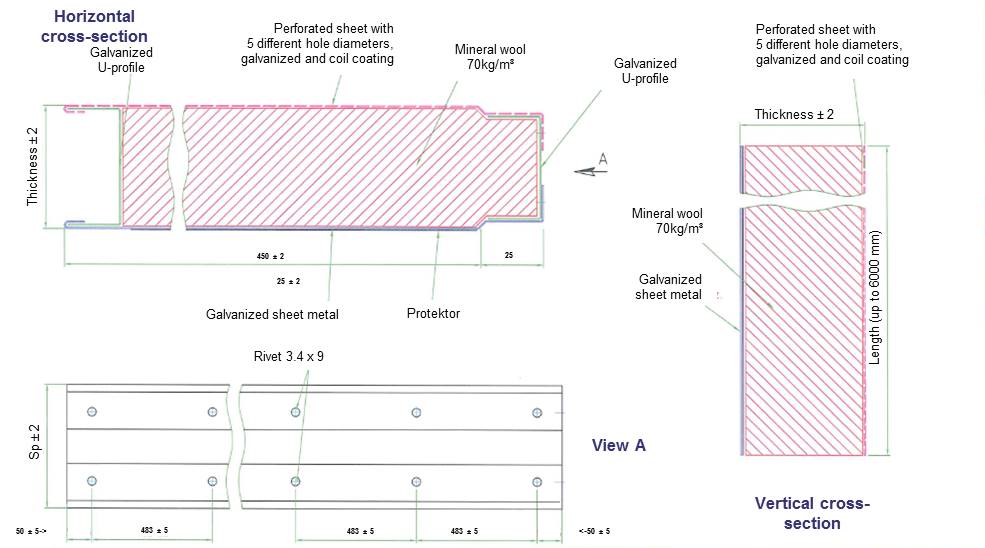

System Design:
 |  |  |  |
| (Click to enlarge pictures) | |||
